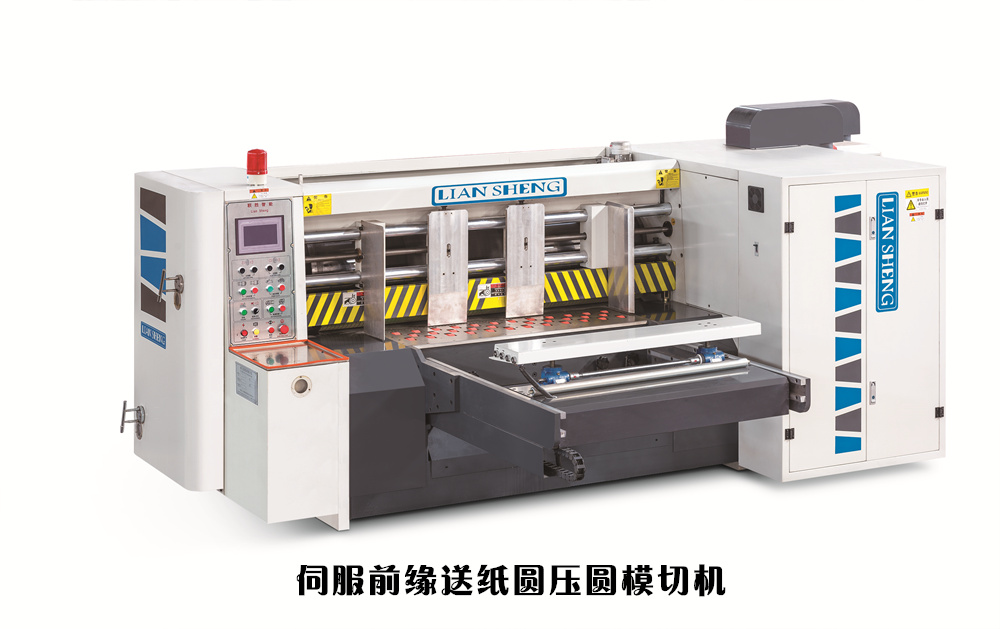

| 伺服前沿送紙圓壓圓模切機 | |||||
| Servo Lead Edge Feeding Rotary Die Cutting Machine | |||||
| 送紙采用德國力士樂伺服系統驅動送紙輪，送紙準確可靠，單獨伺服控制有效避免了精度的丟失，獨立伺服電機控制減少了傳動環節，使用壽命長； | Feeding Unit Driven by German Bosch-Recroth Servo System, reliable and accurate, independent servo control avoids the reducing of the accuracy and independent servo motor driven need less transmision components gives the machine longer serving life. | ||||
| 采用真空吸附輔助送風系統，風壓可調; | Auxiliary vacuum feeding unit, vacuum adjustable; | ||||
| 配有柔性進紙機構及隔張送紙功能; | Flexible feeding system and skip feeding function. | ||||
| 整機齒輪高頻熱處理，表面加硬精磨制成；采用噴淋式自動潤滑， 極大提高了運轉精度及使用壽命 | The gears are high frequency heat treated, surface hardening and fine grinding, equipped with automatic spray lubricating system, greatly improves the running condition and service life. | ||||
| 左右檔板位置有電腦控制調整，快速準確。 | Both port and starboard guiding plate can be adjusted by computer, fast and accurate; | ||||
| 輥筒采用優質鋼，內部調質，表 面研磨鍍硬鉻并做平衡處理， 增加運轉平穩 | Rollers made of high quality steel, quenched and surface tempered,chromed and fine grinded, balanced to improve its running stability; | ||||
| 采用進口模切膠墊，安裝調換快速方便，模切刀口平滑， 使用壽命長，極大降低使用成本 | Imported Anvil cover, easy installation and replacement;clean cut and long life for the die blades. | ||||
| 模切輥采用液壓裝置 橫向移動，距離為 40mm 并有氣動裝置控 制板輥上下升降，延長膠墊使用壽命 | Axial movement of the Anvil roller driven by hydraulic system with a distance of 40mm, smooth and stable.Pneumatic cylinders controls the lifting and lowering of the Die Roller, disengage the rollers while not feeding. | ||||
| 主要技術參數 | Parameters | ||||
| 規格型號 | Model | MR216A | MR220A | MR225A | MR228A |
| 最高速度 | Max. Speed(Pcs/Min.) | 160 | 160 | 140 | 140 |
| 經濟速度 | Min. Speed(Pcs/Min.) | 80-100 | 80-100 | 80-100 | 80-100 |
| 最大模切尺寸 | Max. Feeding Size(mm) | 1380*1600 | 1380*2000 | 1380*2400 | 1380*2800 |
| 最小模切尺寸 | Min. Feeding Size(mm) | 400*600 | 400*600 | 400*600 | 400*600 |
| 適應紙板厚度 | Suitable Thickness(mm) | 2-11 | 2-11 | 2-11 | 2-11 |
| 模切精度 | Precision(mm) | ±1 | ±1 | ±1 | ±1 |
| 電機總功率 | Main Power(KW) | 5.5 | 7.5 | 7.5 | 11 |
| 另有型號 | |||||
| MR116A | MR120A | MR125A | MR128A | ||
| MR316A | MR320A | MR325A | MR328A | ||
| MR416A | MR420A | MR425A | MR428A | ||
